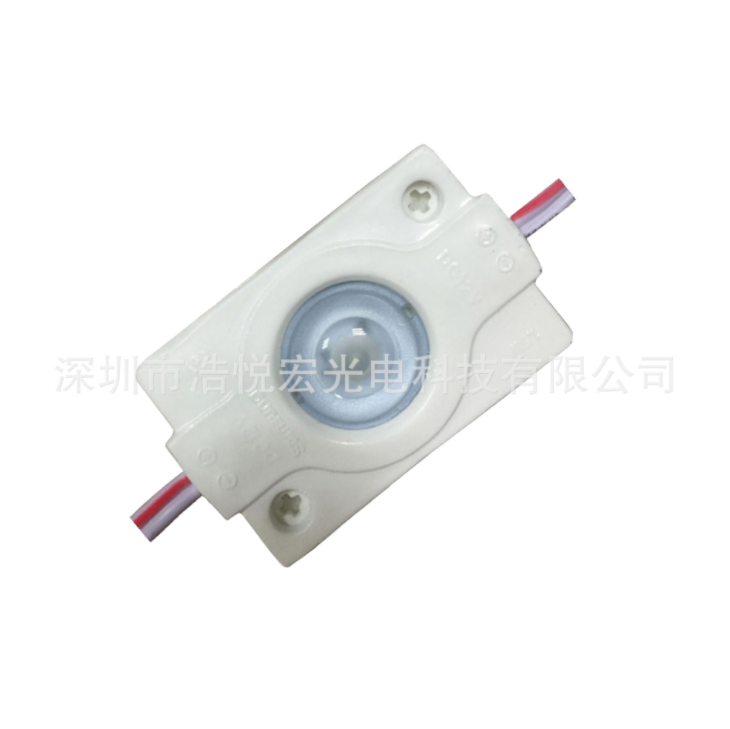

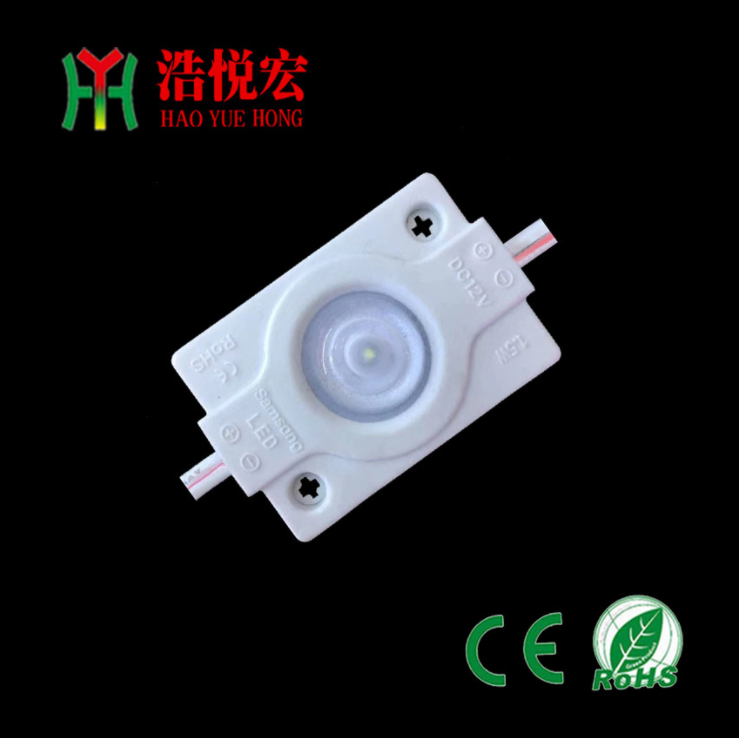

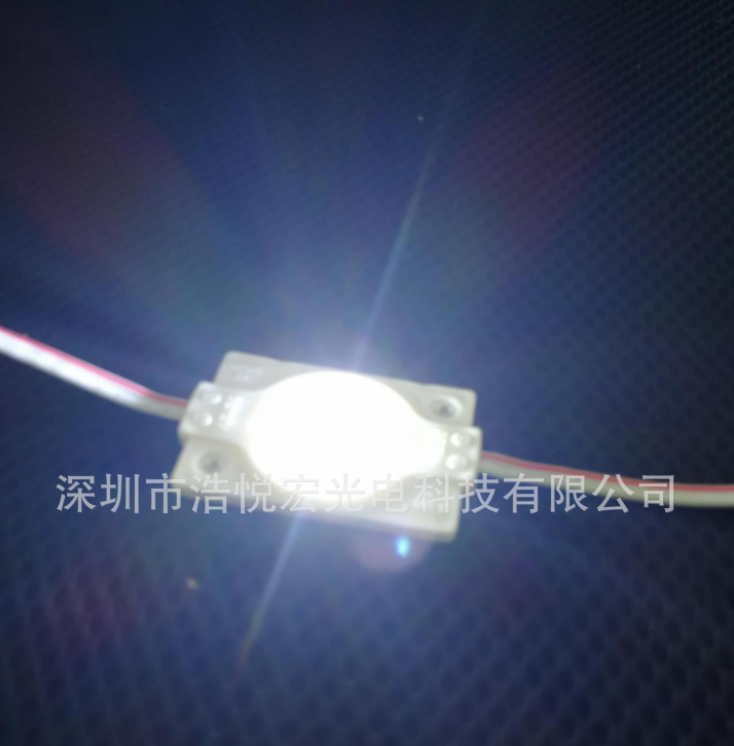

3030 High-power Back Side LED Module
|
|
| Price ： |
|
| Model ： |
3030 High-power Back Side LED Module
|
| Specification ： |
45 x 30 mm
|
| Power ： |
1.5 W
|
| Color ： |
CW/WW/Red/Green/Blue/Yellow/Pink
|
| Brand ： |
HYH
|
| Voltage ： |
DC12V
|
| Type of LED ： |
IP67
|
| Warranty ： |
2 Years
|
| Features ： |
High brightness, Long lasting
|

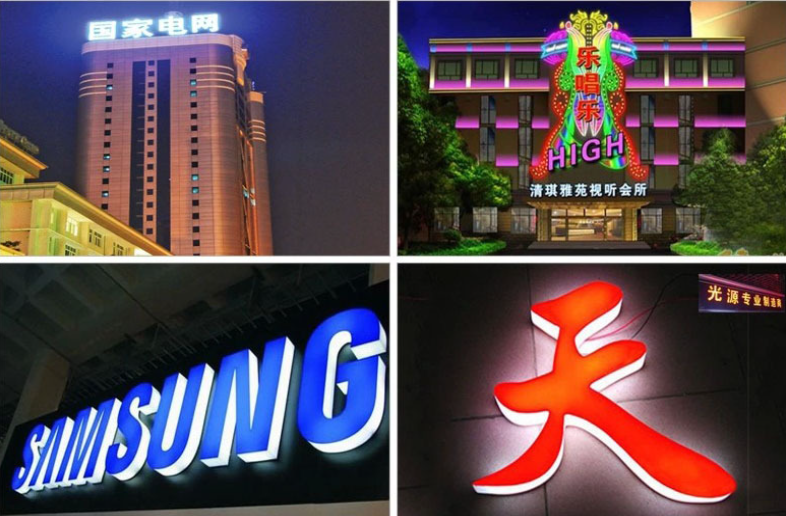

| Lighting Type ： |
Glow Sign Board
|
| Viewing Angle ： |
160°
|
| IP Rating ： |
IP 67
|
|
|
|
|
| Model | Color | CCT（K） | Viewing Angle | CRI (Ra) | Lm | Voltage (DC) | Current（mA） | Power | 45 x 30 mm | White | 13000-15000 | 90 (°) | ＞70 (°) | 130-150 | 12V | 120 mA | 1.5 W |
Model | Max in Series | Weight (g) | Operating Temp(℃) | Storage Temp (℃)
| IP Rate | Material | Chip | 45 x 30 mm | 20 | 108 g | -35～+50 | -35～+70 | IP67 | PVC+PC | 3030
|
|
